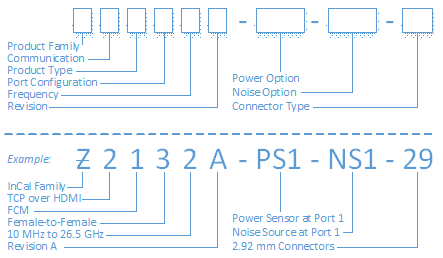

Model Numbering Scheme

FCM Model Numbering

Product Family

Z

InCal (Inline Calibration).

Communication

1

Serial data over USB.


2

TCP over HDMI.

Standards

1

Impedance standards at FCM Port 1.

Configuration

2

Impedance standards at FCM Port 2.


3

Impedance standards at FCM Port 1 and Port 2.

Port Configuration

1

Female-to-Male.


2

Male-to-Female.


3

Female-to-Female.


4

Male-to-Male.

Frequency

1

10 kHz to 8 GHz.


2

10 MHz to 26.5 GHz.


3

10 MHz to 40 GHz.

Model Revision

--

Alpha revision.

Power Option

PS1

Power Sensor at Port 1.

(if installed)

PS2

Power Sensor at Port 2 (requires impedance standards at Port 2).

Noise Option

NS1

Noise Source at Port 1.

(if installed)

NS2

Noise Source at Port 2 (requires impedance standards at Port 2).

Connector Type

24

2.4 mm.


29

2.92 mm.



Other connectors types may be available upon request.
