A minimum system configuration includes the following:

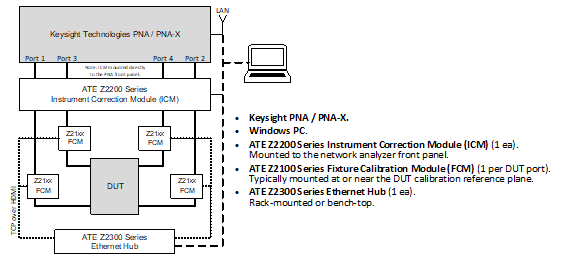

Figure 1 InCal System Simplified Block Diagram
Note: A simple 4-port DUT configuration is shown. InCal supports n-port DUT’s
in multiplexer (MUX) or interconnect test assembly (ITA) configurations.
|
